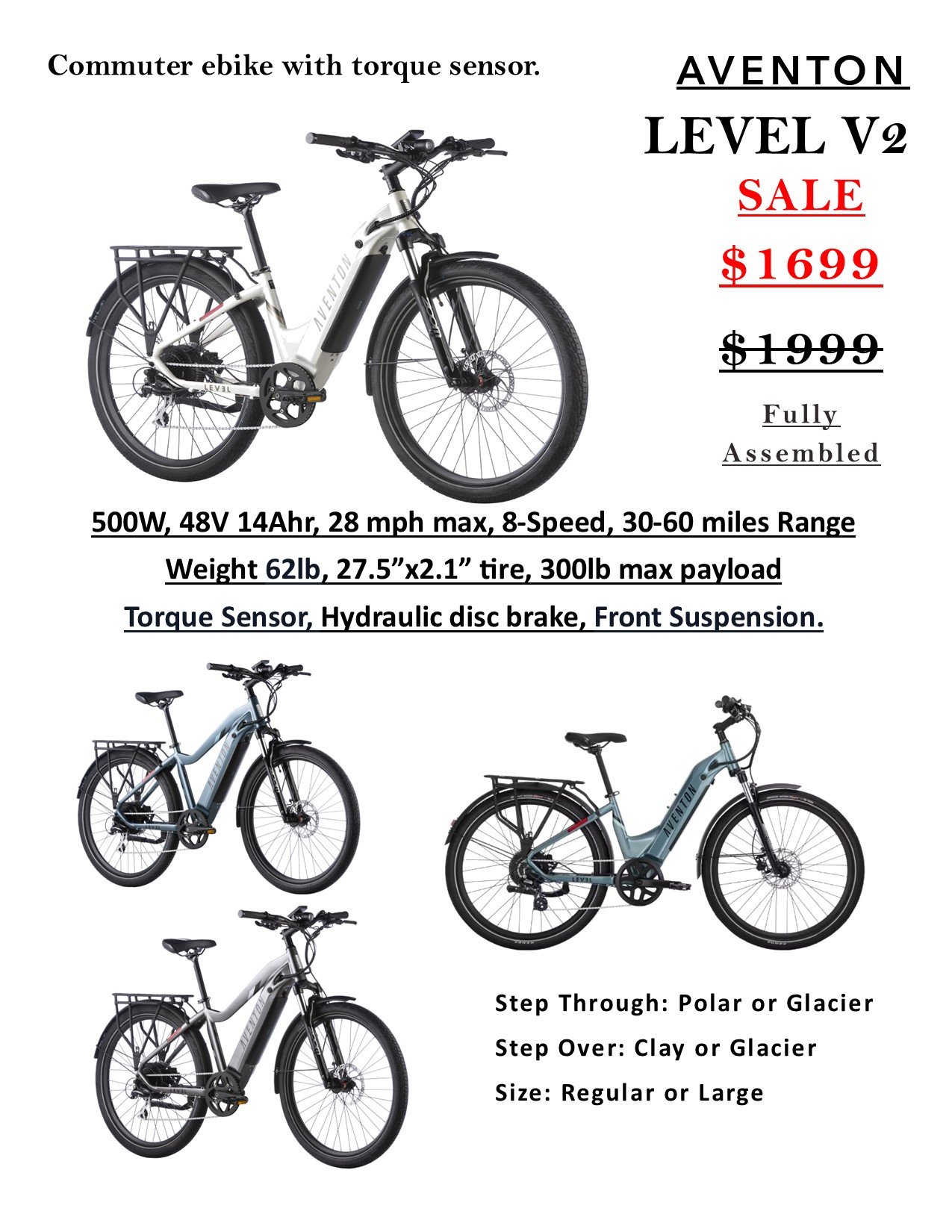

Level.2 Step-Through Commuter Ebike

Meet the Level.2 Step-through, the perfect balance of comfort, efficiency, and ease of use. Its integrated features, including preinstalled fenders, a sturdy rear rack, and a front suspension fork, provide unparalleled protection from the elements and an effortless gear-carrying experience. Thanks to the integrated battery and lights, you'll go further and stay visible.

The step-through frame ensures easy on/off, and the torque sensor puts you in complete control, whether you're commuting, exercising, or enjoying a leisurely weekend ride. Elevate your ride with the Level.2 Step-through.

Technical Overview

The Level.2 comes out of the box as a Class II ebike, with pedal assist and throttle. It can be unlocked to a Class III ebike. The Level.2 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb

TECHNICAL SPECIFICATIONS

GENERAL INFO

MODEL

Level.2 Step-Through Commuter Ebike

IDEAL USE

Commuting

RANGE

Up to 60 miles

TOTAL WEIGHT LIMIT

300 lbs

FOLDING

No

RIDER HEIGHT

4'11" - 6'1"

PEDAL ASSIST

5 levels

WEIGHT

62 lbs

SAFETY CERTIFIED

TUV Rheinland Certified in accordance with UL 2849

FRAMESET

FRAME

Double-Butted Aluminum Alloy

FORK

Coil Spring Suspension, Thru-axle, 65mm travel with lockout

FRAME STYLE

Step-Through

WHEELSET

RIM

Double Wall Aluminum 36h Front & Rear

SPOKES

Black Stainless 13G Front / 12G Rear

TUBES

Butyl Rubber, Schrader Valve

TIRES

27.5 x 2.1 Hybrid Tires, Reflective Sidewalls

HUBS

36H Disc Thru-axle Front, Nutted Rear

EBIKE SYSTEM

THROTTLE

Aventon LH Handlebar Mounted

MOTOR

750w (peak), 500w (sustained), 48v

DISPLAY

LCD Smart "Easy Read"

BATTERY

48V, 14Ah (672Wh) LG Cell, UL 2849 Compliant

SENSORS

Double Sided Bottom Bracket Torque Sensor

CHARGER

48V, 3 Amp Fast Charger

LIGHTS

Front and rear lights integrated

SPEED

Class 2

DRIVETRAIN

BOTTOM BRACKET

Square Taper, Sealed, Torque Sensor

PEDALS

9/16" Alloy Platform

CRANKSET

170mm w/ 46 T

REAR DERAILLEUR

Shimano 8 speed

CASSETTE

12-32T, 8 Speed

SHIFT LEVER

8 Speed Trigger

CHAIN

122 Link, 8 Speed

COCKPIT

SEATPOST

Aluminum Alloy, 27.2mm, 2-Bolt Clamp

STEM

Threadless, 31.8mm, 7 Degree Rise

SEAT CLAMP

31.8mm Quick Release

HANDLEBARS

Aluminum 31.8mm, 680mm

HEADSET

Sealed Bearing Headset

SEAT CLAMP

Quick Release

GRIPS

Ergonomic Comfort

SADDLE

Aventon by Velo

INCLUDED ACCESSORIES

KICKSTAND

Included, rear mount

REAR RACK

Included

FENDERS

Included

MISCELLANEOUS

SUSPENSION

Front
